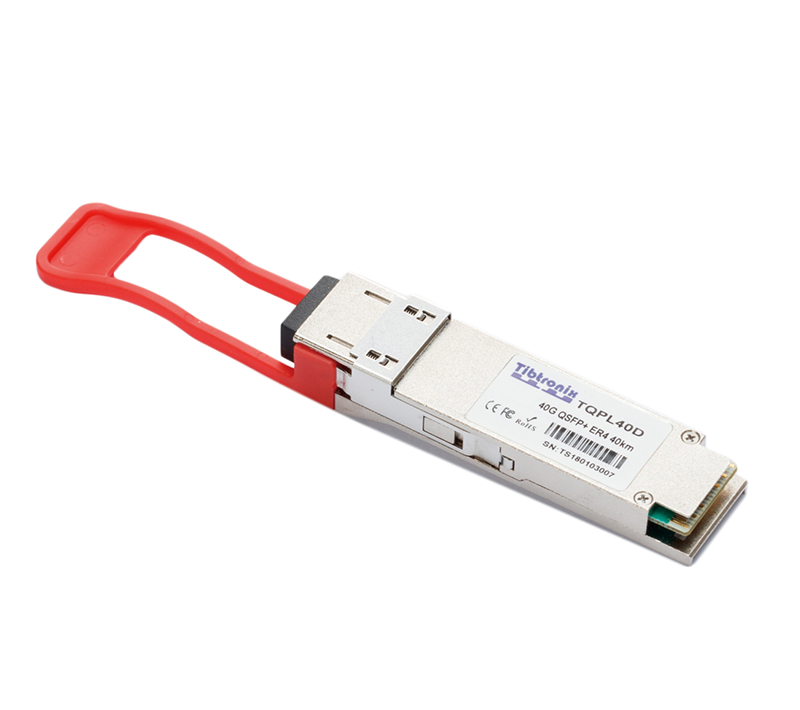

40GBASE-ER4 QSFP+ 1310nm 40km LC DDM Transceiver
40GBASE-ER4 QSFP+ 1310nm 40km LC DDM Transceiver
Type: QSFP-40G-ER4
Optical Components:
DFB CWDM
Data Rate:
41.25Gbps
Output Power:
-7~8dBm
Wavelength:
1271, 1291, 1311 and 1331nm
Receiver Sensivity:
≤ -21dBm
Distance:
40km
Cable Type:
SMF
Interface:
LC
Temperature Range:
0 to 70°C
Share it:
  • Product Features
  • Applications
  • Downloads
  •   The TQPL40D is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.


    The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.


    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

    The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.


    The TQPL40D is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.



  • Rack to rack

    Metro networks

    40G BASE-ER4 Ethernet Links
